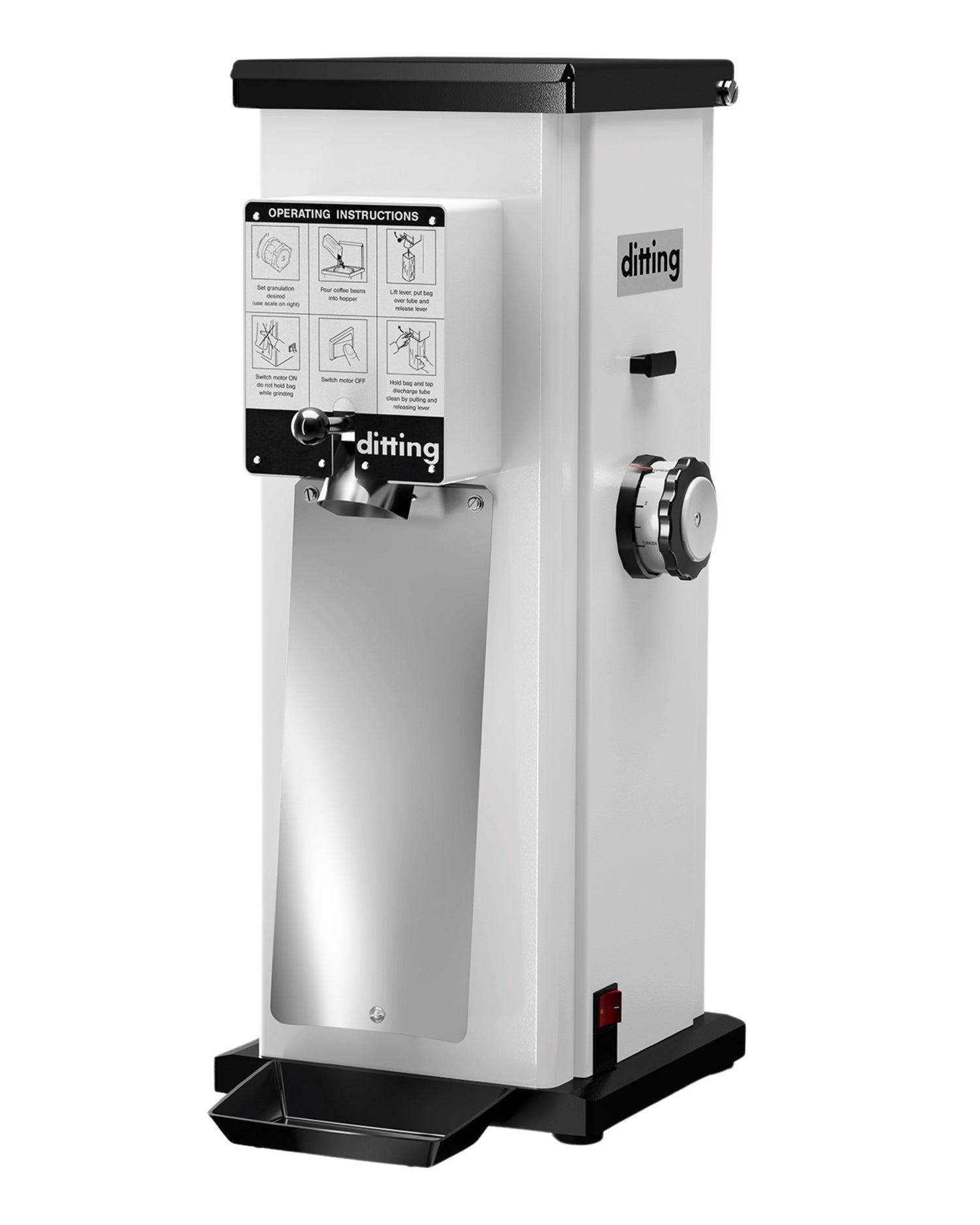

Ditting 1403 Shop Coffee Grinder

The 1403 convinces with its immense grind speed, powerful performance and high daily capacity. It is the ideal solution for busy coffee shops as well as roasteries with high workloads.

Key Features

• Specially developed 140 mm burrs allow high grinding capacity for all grind adjustment steps

• Wear-resistant steel burrs

• Aromasaving consistent grinding

• Stepless grind adjustment

• Minimal retention of coffee residues left inside the slide thanks to the manual knocker

• Bag shaking device ensures an optimal filling of the bags

• Very easy to maintain and to clean

Product Specifications

Voltage // frequencies // phases:

• 380-415 V // 50/60 Hz // 3~

• 200-240 V // 50/60 Hz // 3~

Revolutions per minute: 1400 rpm (50 Hz)

Burr diameter: 140 mm

Burr material: Special steel

Burr grind life (median setting): ca. 10-15 tons

Average grinding capacity*: 2200 g/min

Bean hopper capacity: approx. 1100 g

Nominal power: 1700-2000 W

Dimensions (w x h x d): 260 x 640x 340mm

Dimensions of packing (w x h x d): 330 x 730 x 400 mm

Net weight: 38kg

Shipping weight: 40kg

Standard colors:

• Jet black

• Brown beige

• Ruby red

• Signal white

Available versions:

• KFA: Automatic bag clamp (no bag shaking unit)

• KR: Manual bag clamp (with bag shaking unit)

Listings: CE-conform, CB, UL, NSF, Additional on request

Standards: IEC/EN 60335-1; IEC/EN 60335-2-64; ANSI/UL 763; ANSI/NSF 8 CSA-C22.2 No. 195, Additional on request

EQUIPMENT FEATURES:

• Powerful three-phase motor

• Grind size adjustment with extraction information

• KR: Bag clamping lever and knocker unit

• KR: Shaker plate
